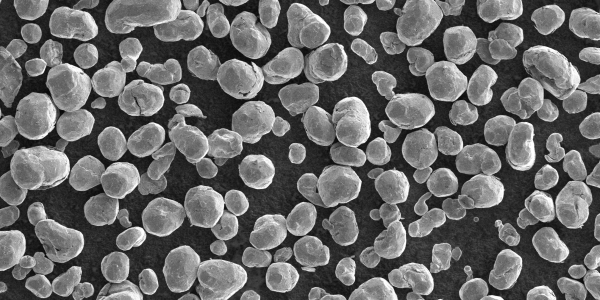

AISI 316L MIM 5–20 µm is a high-quality austenitic stainless steel powder engineered for metal injection molding (MIM) applications. Its fine, spherical morphology and tightly controlled particle-size distribution ensure excellent flowability, homogeneous binder mixing, and uniform mold filling. The alloy delivers outstanding corrosion resistance, good mechanical strength, and reliable sintering behavior, enabling the production of dense, dimensionally accurate components with smooth surface finish. AISI 316L MIM parts provide long-term durability, chemical stability, and consistent performance in demanding industrial and precision-engineering applications.
Key facts:
No satellites or agglomerates – stable process behavior
High tap density (min. 4.4 g/cm³)
Optimized for MIM processing
Powder designed for:
MIM (Metal Injection Molding – fine surface finish, high-density components
Element Weight %
C ≤ 0.03
Cr 16.5 – 18.5
Ni 10.0 – 13.0
Mo 2.0 – 2.5
Mn ≤ 2.0
Si ≤ 1.0
P ≤ 0.045
S ≤ 0.015
Fe Bal.
Nominal particle size (SIA): 5-20 μm.
Sieve Analysis
d95 max: 20 µm
Upper cut-off : 30 µm
Tap Density: ASTM B527, >4.40 g/cm3
Other tailored PSDs available upon request.
